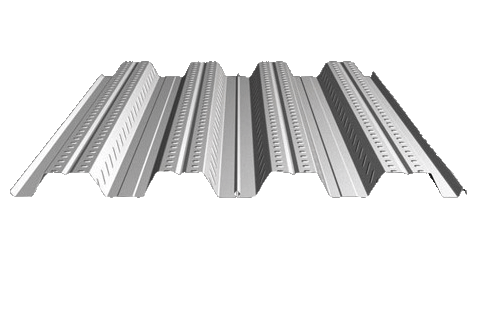

Decking Sheets (50 MM)

Trapezoidal Metal Profile sheets with strong and reliable shear bond performance which is augmented by cross embossing located in the profile. The composite floor profile offers the ultimate in the light weight steel decking which reduced concrete usage to provide a cost effective and alternative floor solution that easy to install.

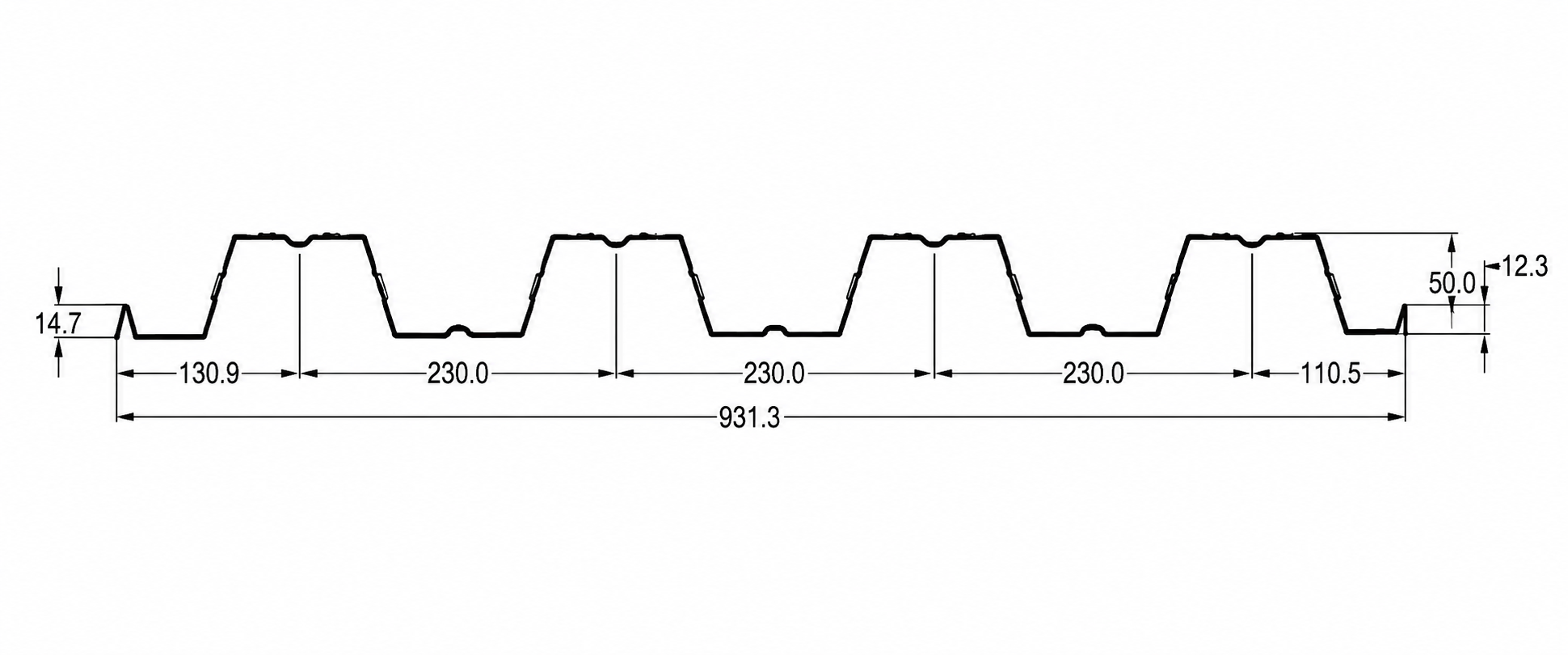

Specifications

  Dimension(mm)
Depth(d) 50
Pitch(p) 230
Overall Width 931
Covered Width 910
Thickness 0.80-1.2
Thickness 0.8mm/1mm/1.2mm

Load Table

Allowable load (KN /m2) for deck 50mm ( 250Mpa)
Thickness Span In Meters
1.00 1.25 1.50 1.75 2.00 2.25 2.50 3.00
0.8 19.33 12.29 8.45 5.89 4.16 3.33 3.01 1.73
1 23.81 15.49 10.37 7.81 5.89 4.61 3.65 2.37
1.2 28.93 18.05 12.29 9.09 7.17 5.25 4.29 3.01
Allowable load (KN /m2) for deck 50mm ( 345Mpa)
Thickness Span In Meters
1.001.251.501.752.002.252.503.00
0.826.3716.7711.65 8.45 6.53 5.25 3.97 2.37
1 33.41 21.25 14.85 10.37 7.81 6.53 5.25 3.65
1.2 39.81 25.09 17.41 12.93 9.73 7.81 5.89 4.42

Advantages

  • Reduced Concrete usage: Tensile steel for composite slab construction that cuts down on slab thickness and dead weight of buildings. Providing a more sustainable solution and reducing costs.
  • No separate formwork required for slab casting.
  • Reduces construction time.

Applications

  • High Rise Buildings.
  • Multiplexes / Commercial Buildings.
  • Power Plant Buildings.
  • Office Buildings.
  • Mezzanine Floors in Industrial Buildings & Warehouses.
  • Steel deck for mezzanine floors.
  • Power Projects.
  • Industrial Buildings Multi-Storeyed Buildings.
  • Supermarkets / Malls.
  • Storage Sites.
  • Mezzanine Floors.
  • Bridges.
  • Walkways.
  • Platforms.
