Z & C Purlins for Industrial Roof & Wall Framing

Precision roll-formed galvanized Z & C purlins strong, lightweight support for PEB, industrial and commercial roofs and walls.

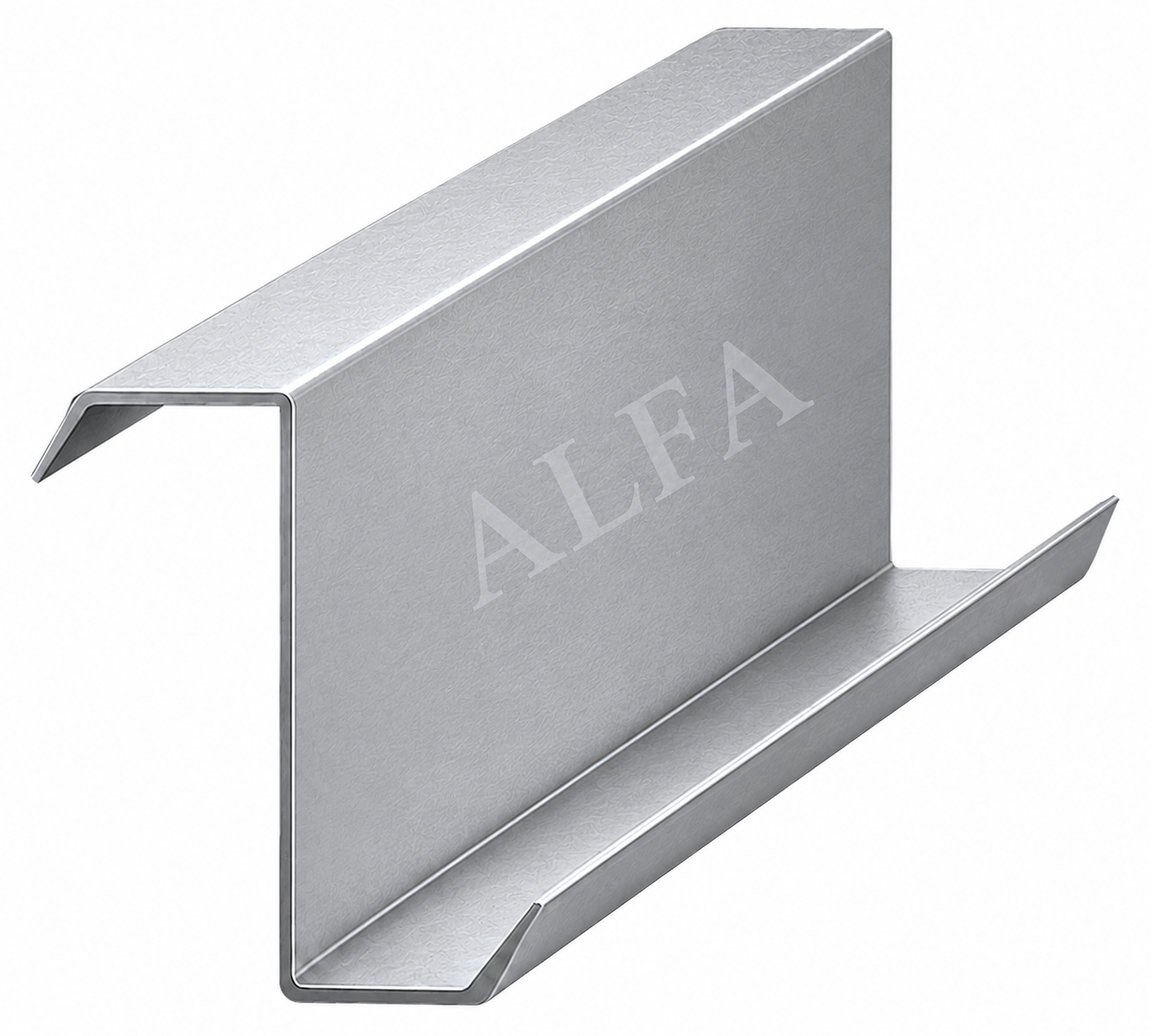

Clear Span
Z Purlin

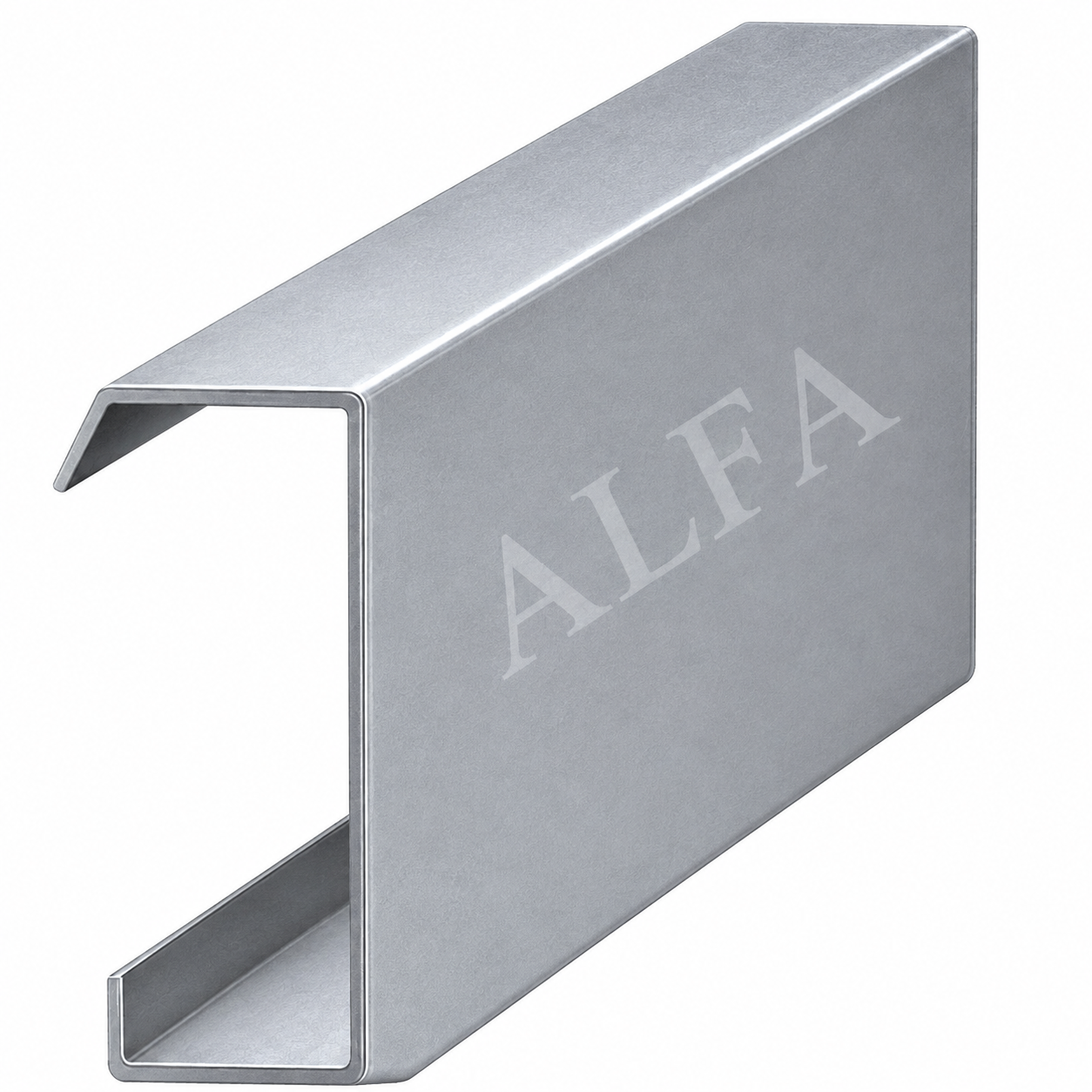

Clear Span
C Purlin
High-tensile galvanized steel
High strength-to-weight section
Straight and true no twist
Corrosion-resistant zinc coating
Clear Span

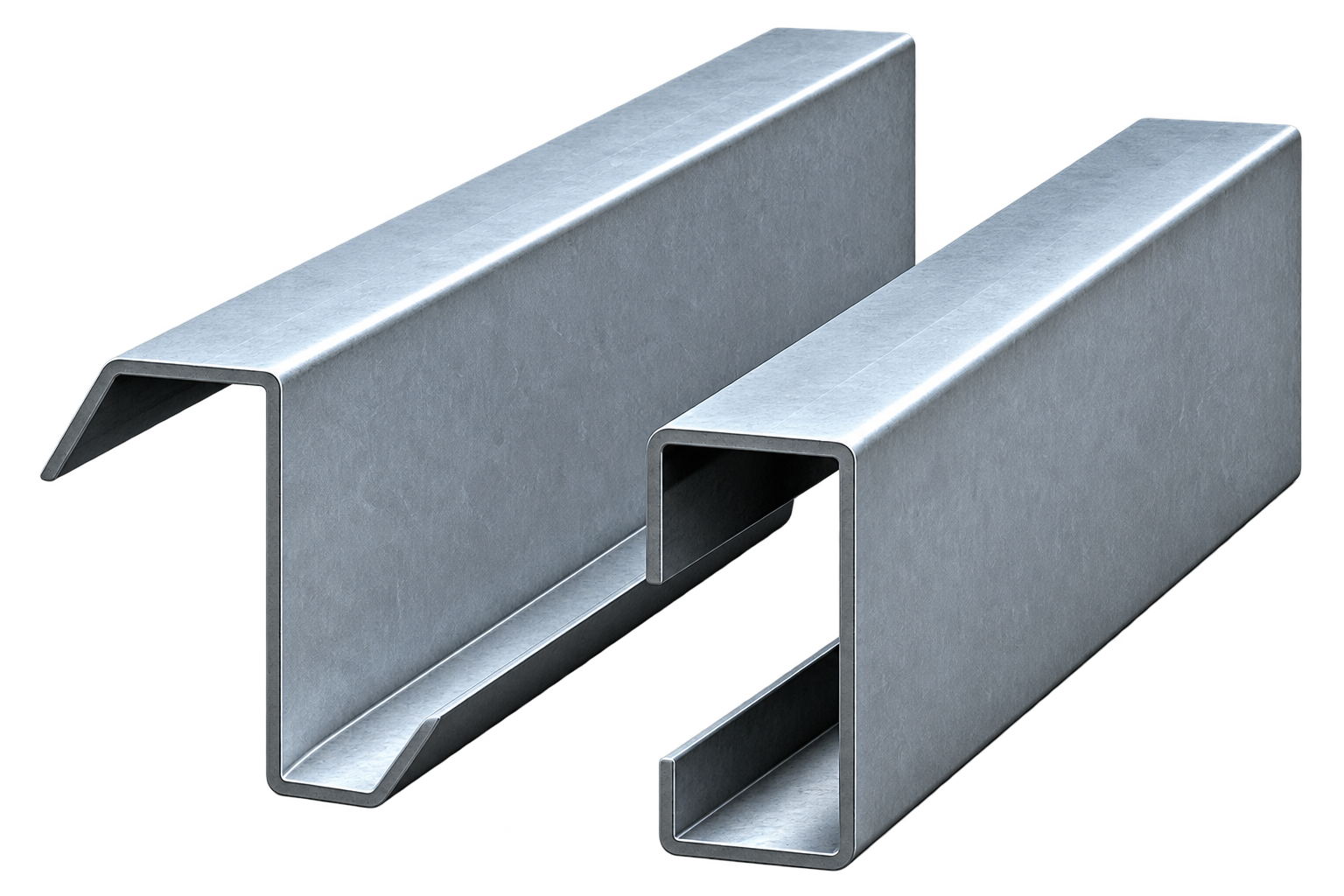

High-Strength Z & C Purlins for Industrial Roof & Wall Support.

Z and C purlins are precision roll-formed galvanized steel sections designed to provide lightweight, high-strength structural support for industrial and commercial roofing and wall cladding systems. Engineered for superior load distribution, spanning performance, and dimensional accuracy, these cold-formed steel members efficiently transfer roof and wall loads to the primary building structure. Available in multiple depths, thicknesses, and project-specific lengths, Z and C purlins are widely used in warehouses, factories, PEB structures, and commercial buildings for durable and cost-effective secondary framing solutions.

Z Profile — Lapped Continuous Span System C Profile — Single Span & Girt Applications High-Tensile Galvanised Steel Construction Cut to Project-Specific Bay Lengths.
Pre-Engineered Buildings by Alfa PEB Limited

Why Choose Alfa PEB for Z & C Purlins?

Alfa PEB Limited provides precision-formed Z and C purlins designed for pre-engineered buildings, industrial sheds, warehouses, factories, roof framing, wall girts, and secondary steel framing systems. Our purlins are lightweight, strong, corrosion-protected, easy to install, and supplied with accurate punching and fixing accessories for faster erection and reliable structural performance.

Strong Secondary Framing

Provides reliable support for roof sheeting, wall cladding, girts, and secondary steel framing in PEB structures.

Flexible Installation

Z and C purlins can be aligned, rotated, and fitted easily to suit different roof and wall framing requirements.

Pre-Engineered Accuracy

Precision-formed and pre-punched sections help ensure accurate installation with minimal site modification.

Corrosion Protection

Pre-painted or coated purlin sections help resist corrosion and support long service life.

Complete Fixing Accessories

Supplied with required fixing accessories, reducing extra procurement and improving site installation efficiency.

Faster & Cost-Effective Erection

Ready-to-install purlins reduce site fabrication, labour effort, erection time, and overall project cost.

Technical Details.

Specifications

Z & C Purlin Technical Specifications.

01/04

Alfa PEB Z and C purlins are precision-formed secondary steel members used in pre-engineered buildings, industrial sheds, warehouses, factories, and roofing structures. The technical table below includes purlin depth, thickness, mass, flange, and lip details to help engineers select the right purlin profile based on span, load, and project requirements.

Technical Specification of Z & C Purlins
Purlin Depth D Thickness T Mass kg/m Z Purlin C Purlin
F L F L
150 1.6mm / 1.8mm / 2.0mm / 2.5mm / 3.0mm 60 20 60 20
160 1.6mm / 1.8mm / 2.0mm / 2.5mm / 3.0mm 60 20 60 20
200 1.6mm / 1.8mm / 2.0mm / 2.5mm / 3.0mm 60 20 60 20
230 1.6mm / 1.8mm / 2.0mm / 2.5mm / 3.0mm 60 20 60 20
250 1.6mm / 1.8mm / 2.0mm / 2.5mm / 3.0mm 60 20 60 20
300 1.6mm / 1.8mm / 2.0mm / 2.5mm / 3.0mm 60 20 60 20
Typical Connection

Typical Connection.

02/04

Z and C purlins should be installed with proper alignment, accurate bolt-hole matching, and suitable fastening as per approved project drawings. Correct connection detailing helps ensure structural stability, roof support, wall framing strength, and long-term performance in pre-engineered buildings.

During site handling, purlins must be stored and protected carefully to maintain their shape, coating quality, and connection accuracy.

  • Store purlins properly before installation.
  • Keep minimum time between delivery and installation.
  • Stack purlins neatly on a slight slope to allow water drainage.
  • Protect purlins from rain, moisture, and condensation using waterproof covers.
  • Avoid direct contact with wet ground or standing water.
  • If purlin bundles become wet, separate the members and wipe them dry.
  • Ensure holes, cleats, and connection points match the approved drawings.
  • Use proper fastening for roof purlins, wall girts, and secondary steel framing.
Clear Span
Multi-Span
Advantages

Advantages of Z & C Purlins.

03/04
  • Manufactured from premium galvanized steel for superior durability.
  • Engineered for maximum strength with minimum steel consumption.
  • Quick installation reduces project execution time and labour costs.
  • Excellent corrosion resistance for long-term structural reliability.
  • Available in various sizes and thicknesses to suit project requirements.
  • Ideal for industrial buildings, warehouses, factories, and commercial structures.
  • Provides reliable support for roofing sheets and wall cladding systems.
  • Cost-effective solution for modern steel building construction.
Different Z&C purlin

Types of Z & C Purlins.

04/04

Alfa PEB offers HR purlins and GI purlins for pre-engineered buildings, warehouses, factories, industrial sheds, roof framing, and wall cladding applications. These purlins are designed as strong secondary steel members that support roofing sheets, wall girts, and structural framing systems.

HR Purlins

HR purlins are suitable for structural framing, roof support, and wall support applications in pre-engineered buildings and industrial structures.

Key Details:
  • Yield Strength: 240 MPa
  • Finish Option: Red Oxide Primer Coating

GI Purlins

GI purlins are galvanized steel purlins designed for improved corrosion resistance, durability, and long-term performance in roofing and wall cladding systems.

Key Details:
  • Coating Mass: 120 GSM / 180 GSM / 275 GSM
  • Yield Strength: 240 MPa / 340 MPa / 550 MPa

Applications.

Pre-Engineered Buildings

Z and C purlins are widely used as secondary framing members in PEB structures to support roofing sheets, wall cladding, and structural stability.

Industrial Sheds

Ideal for industrial sheds where lightweight, strong, and cost-effective roof support systems are required.

Warehouses

Used in warehouse roofing and wall framing systems to provide reliable support for large-span steel structures.

Factories

Suitable for factory buildings, production units, and manufacturing facilities that need durable secondary steel framing.

Roof Framing Systems

Z and C purlins provide strong support for metal roofing sheets, insulated panels, and other roof covering systems.

Wall Girts & Cladding Support

Used as wall girts to support wall cladding, façade sheets, and external building envelope systems.

Commercial Buildings

Suitable for commercial steel buildings, showrooms, retail spaces, and service facilities requiring efficient framing support.

Agricultural & Storage Sheds

Used in farm sheds, storage buildings, agro-industrial units, and utility structures where durable and economical steel framing is needed.

FAQ's

The difference is the cross-section. A C purlin is a plain channel with both return lips on the same side a symmetrical single-span section. A Z purlin carries its lips on opposite flanges, giving an offset Z shape. That geometry lets two Z sections nest and overlap at the supports, which a C section cannot do. Both are cold-formed from the same high-tensile galvanized steel; the shape decides how the section behaves under load.

Because the Z shape is offset, two purlins can overlap and bolt together at the support, where bending forces are highest. This lapped zone effectively doubles the section over the support, raising its moment capacity exactly where it's needed. The result is a continuous, stiffer member across multiple spans with less deflection something a plain C section can't achieve. C sections are used for single spans and end positions where lapping isn't possible.

Alfa Z & C purlins are roll-formed from high-tensile pre-galvanized steel coil. High-tensile grade gives predictable yield strength and load capacity, while the galvanized coating builds corrosion protection into the steel itself rather than adding it afterward.

Z & C purlins are available in a range of section depths (typically ~100–300 mm) and thicknesses (typically 1.2–3.2 mm). The correct depth and gauge are matched to the required span, load and stiffness.

Yes. They are formed from pre-galvanized coil, so the zinc coating is part of the material and protects the full formed section, including the edges and lips. Coating class (GSM) can be selected to suit the environment.

Yes. Every purlin is supplied cropped to exact length and pre-punched to the required hole pattern, so sections arrive as a finished, ready-to-fix member — no site cutting or drilling.

Selection depends on the span between supports, the load, and whether a continuous (lapped Z) or single-span (C) member is required. Deeper sections and heavier gauges carry more load over longer spans. Share your span and loading and our team will confirm the correct section.

Tight roll-forming tolerances hold the depth, flanges and lips consistent along the full length, producing straight, true sections free of twist and camber — so they align and bolt up accurately, length after length.

Price depends on the section (Z or C), depth, thickness, coating class, length and quantity, and moves with steel coil rates. Send your specification for a current, itemised quotation.

Alfa PEB manufactures and supplies Z, C, Sigma and Eave purlins across India. Request a quote and our team will confirm specification, pricing and delivery.
